Innovision Technology - 4-channel DVR

PDR-400 is a cost-effective, user-friendly 4 channel Hard Diskl video recorder, combining all functions of multiplexer, digital image compression processor and data recorder. Stand Alone design requires no operation system, easy to operate; all controls can be done through front panel. PDR-400 adopts Advance Motion JPEG compression technology; recording speed is up to 30 fields per second for quad recording or 7.5 fields per second for 4 channel full screen recording. Overwrite function allows system overwriting the oldest data when hard disk is full, no more tape change requires. Data can be searched by date and time, providing quick and easy data search for playback.

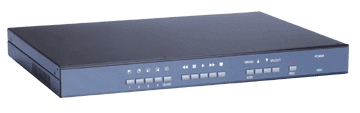

INNOVISION 4-channel Hard Disk Recorder

Catalogue 　

System Specifications
Video
Compression	Motion-JPEG MJPEG3 Compression ratios: High / Standard / Long Length
Video output	2 BNC composite with 75 Ω termination
Video Input	4 BNC composite with 75 Ω termination
Display Resolution
Display Resolution	Up to 25fps at 720 x 576
Record Resolution
Record Resolution	Quad : maximum 25 fps Single: 25fps / recording channel
Alarm Features
General I/O	4 alarm inputs(NO/NC)
1 alarm outputs(NO)
Physical
External Power Adapter	Input: 100-240V AC , 25W
Dimensions	434mm (W) x 310mm (D) x 44 (H)
Weight	Approx. 4Kg
Recording
Mode	Continous / Manual / Alarm / Schedule
Data Search	Data can be searched by Date & time
Storage	IDE HDD Storage (optional), expandable up to 2 HDD, auto overwrite or stop selectable when full
