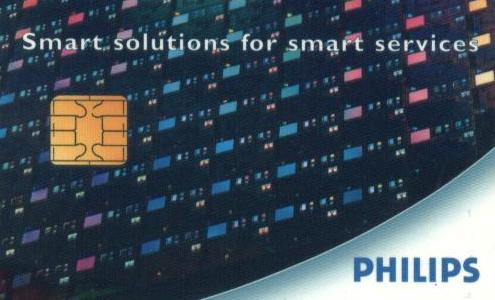

Philips' Contactless MIFARE® Smart Card ICs

Now only USD $1.2 for quantity over 2K

MIFARE® is the industry standard for contactless smart card applications. With a worldwide installed base, it is a well proven secure RF communication technology for transmitting data between a card and a reader device.

Our MIFARE® contactless smart card provide the most advanced combination of security and convenience for contactless interfacing in accordance with the ISO 14443A interface standard.

MIFARE® products supporting multiple applications in a single card. The key application for the MIFARE® Interface Platform is electronic ticketing in public transport system, benefiting from improved convenience and speed in the ticketing process.

MIFARE® is an open platform, available to any company willing to develop their own contactless smart card applications.

MIFARE® Datasheet

We also provide pre-printed customized MIFARE® card printing services.

MIFARE® Std 1k card Specifications
Memory
Product features	MF-1C S50
EEPROM size	1024 bytes
OTP area	-
Write endurance	100 000 cycles
Data retention	10 years
Organisation
Organisation	16 sectors 64 byte
RF interface
Frequency	13.56Mhz
Baudrate	106 kbit
Anticollision	bit-wise
Operating distance	up to 10 cm
Acc. To ISO 14443A	yes - up to layer 3
Security
Unique serial Nu,ber	4 byte
Random Number generator	yes
Access conditions	per sector
mifare Classic Security	supported
DES & DES3 Security	-
Anti-tear supported by chip
Access keys	2 keys per sector
Special Features
Multiapplication	Supports MAD
Purse Functionality	Value block format
Secure Transport Transaction	512 byte read / 16 byte write
Transaction Time	164 ms
Packaging
Sawn Wafer	MF1ICS5005W/V5D
Sawn Wafer (Au-Bunped)	MF1ICS5005W/V4D
MOA2 Module	MF1MOA2S50/D3F
MOA4 Module	MF1MOA4S50/D
FCP2 Module	MF1FCP2S50/DX
